LED Ground Support

Ground support systems for LED screens: rear-brace frames, suspension beams, A-frame audio towers, inverted-U and U-shaped towers.

Silhouette drawing of a U-Truss crossbar with lifting eyes and a close-up of its spigot pin connector
WR-Torm5075 · U-Truss

U-Truss WR-Torm5075 with printed specifications 60cm and 50x75cm.

WR-Torm6579
WR-Torm6579 · U-Truss

U-Truss WR-Torm6579 with printed specifications 75cm and 65x79cm.

Silver U Frame sections joined with single bars into a continuous lighting array structure
U Frame

U Frame lighting array frame in sizes 500*600mm and 600*760mm, built from UFT/UFTS/UFRS components with connectors and spigots.

Vertical pole with T Frame cross bars stacked into a lighting frame column
T Frame

T Frame lighting frame with TFRS/TFRS-B (diagram dimensions 500 x 250) and TFR-B (diagram dimensions 500 x 500) components.

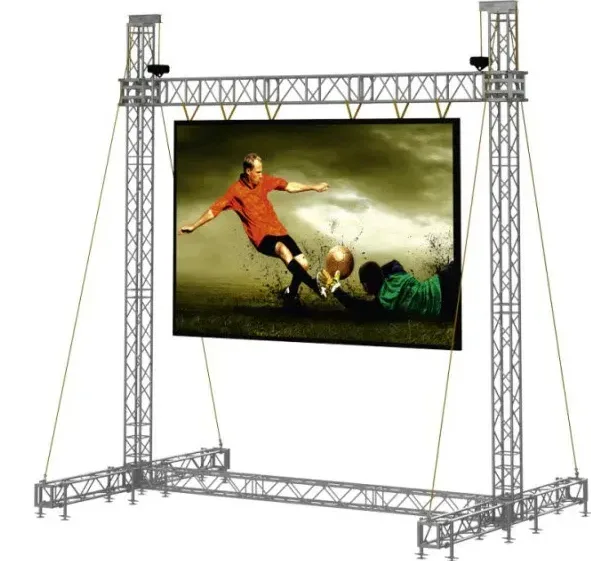

Rendering of an inverted-U gantry truss structure holding a large LED screen with guy wires
Inverted-U Truss

Heavy-duty tower truss made in different styles with load capacity according to customers' requests.

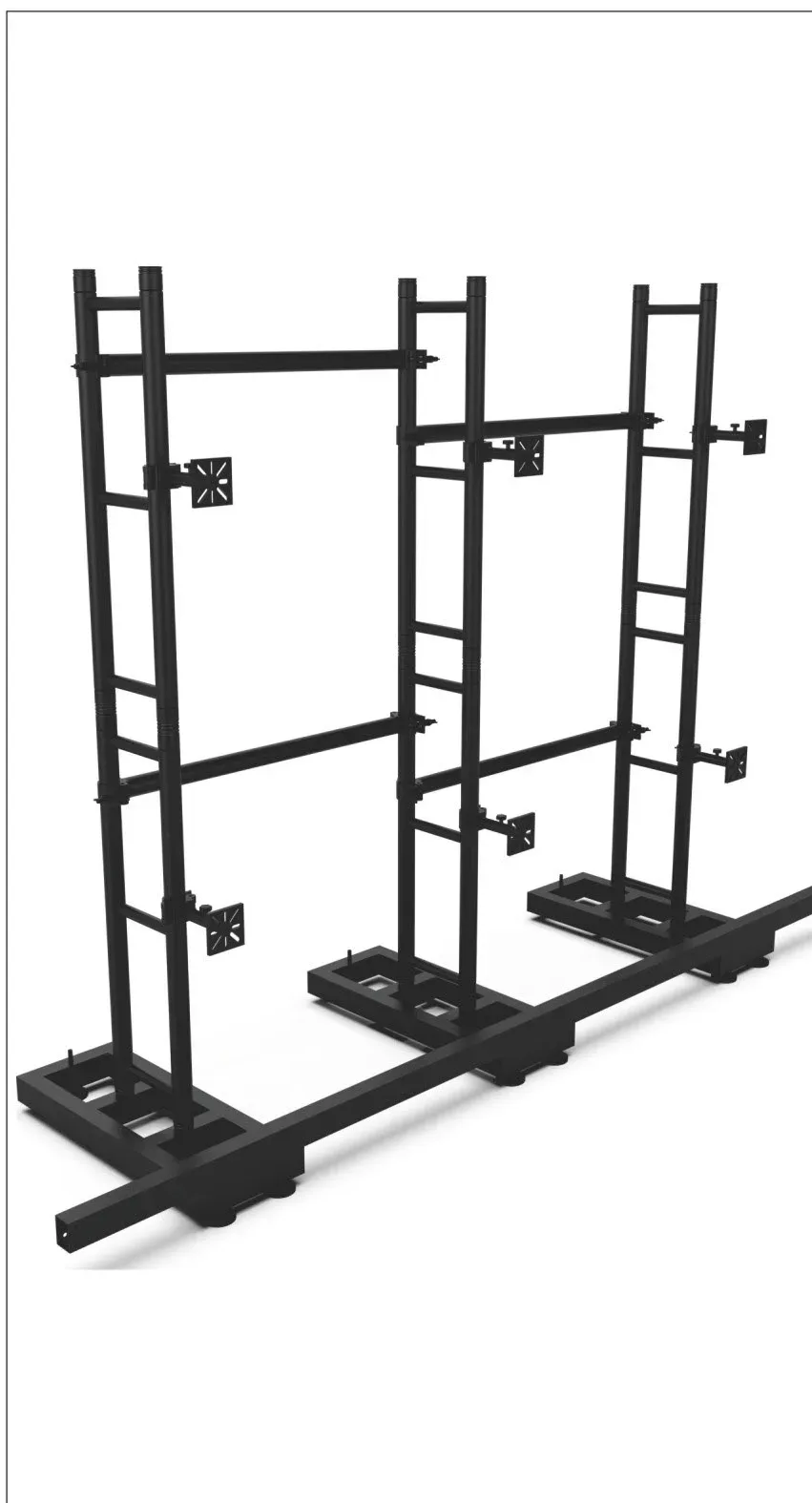

Three black LED ground support towers with mounting plates standing on twin base rails
LED Ground Support

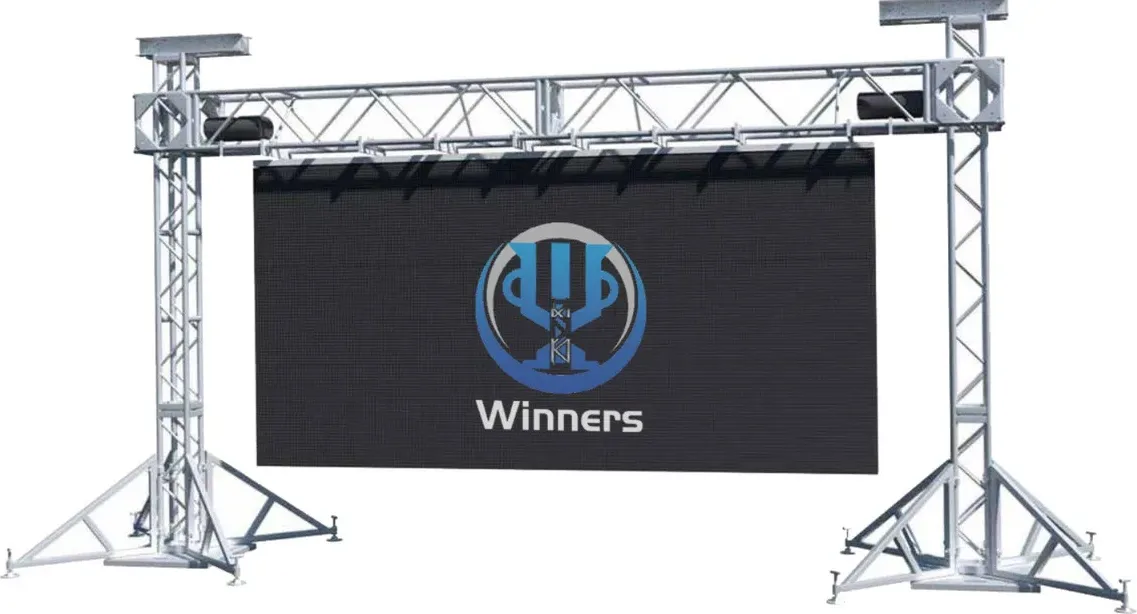

Two galvanized truss towers with a suspension beam supporting a large LED video screen
LED Screen Suspension Beam

New LED screen suspension beam, priority supply to LED screen factories, currently with over 20 factories cooperating.

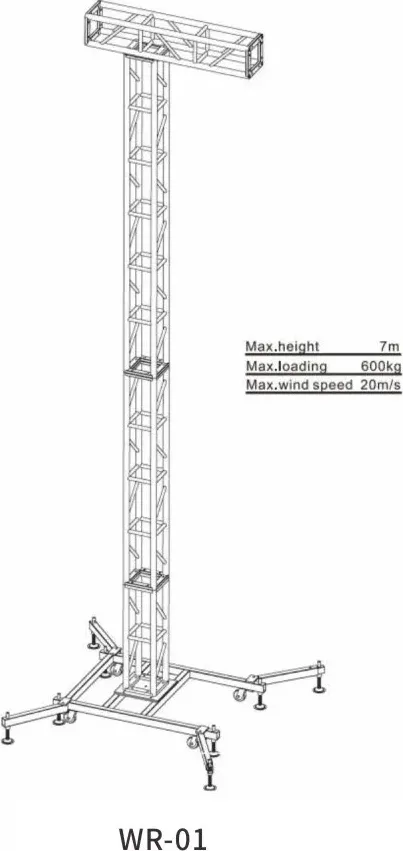

WR-01
WR-01 · Audio Tower

Audio tower with Aluminum 50mm main tube, max height 7m, max loading 600kg, max wind speed 20m/s.

WR-02
WR-02 · Audio Tower

Audio tower with Aluminum 50mm main tube, max height 8m, max loading 700kg, max wind speed 20m/s.

WR-03
WR-03 · Audio Tower

Audio tower with Aluminum 50mm main tube, max height 12m, max loading 1200kg, max wind speed 20m/s.

Audio Tower
Audio Tower

Audio tower with Aluminum 50mm main tube, max height 8m, max loading 600kg, max wind speed 20m/s.
