Spigot Truss

Quick-assembly spigot-connected aluminum truss for stage, lighting and exhibition structures, with matching lifting systems.

WRF-29 290 aluminum ladder truss segment with spigot connectors, angled studio shot

WRF-29 · Ladder Truss

290 ladder spigot truss with 50x3mm main tube, 25x2mm sub tube, 20x2mm brace tube, 6082/6061-T6 aluminum, lengths 50-300 cm.

WRT-29 290x290 aluminum triangle truss segment with spigot connectors, angled studio shot

WRT-29 · Triangle Truss

290x290 triangle spigot truss with 50x3mm main tube, 30x2mm sub tube, 20x2mm brace tube, 6082/6061-T6 aluminum, lengths 50-400 cm.

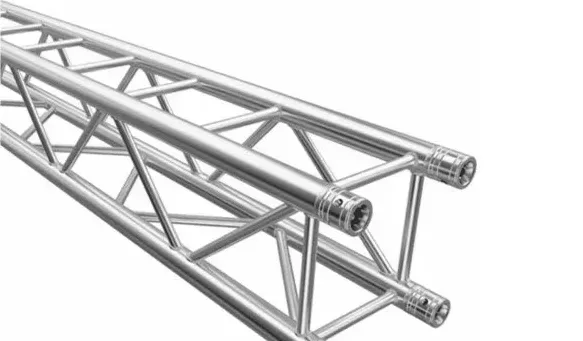

WRS-29 290x290 aluminum square truss segment with spigot connectors, angled studio shot

WRS-29 · Square Truss

290x290 square spigot truss with 50x3mm main tube, 25x2mm sub tube, 20x2mm brace tube, 6082/6061-T6 aluminum, lengths 50-400 cm.

WRS-30 · Square Truss

300x300 square spigot truss with 50x3mm main tube, 25x2mm sub tube, 20x2mm brace tube, 6082/6061-T6 aluminum, lengths 50-400 cm.

WRS-40

WRS-40 · Square Truss

400x400 square spigot truss with 50x3mm main tube, 30x2mm sub tube, 25x2mm brace tube, 6082/6061-T6 aluminum, lengths 50-400 cm.

WRS-4060

WRS-4060 · Square Truss

400x600 square spigot truss with 50x3mm main tube, 50x2mm sub tube, 30x2mm brace tube, 6082/6061-T6 aluminum, lengths 50-400 cm.

WRS-52

WRS-52 · 520x520 Square Truss

520x520 spigot square truss with 50x3mm main tube, 50x2mm sub tube, 25x2mm brace tube, 6082/6061-T6 aluminum, lengths 50-400 cm.

WRS-5060

WRS-5060 · 500x600 Square Truss

500x600 spigot square truss with 50x3mm main tube, 50x2mm sub tube, 30x2mm brace tube, 6082/6061-T6 aluminum, lengths 50-400 cm.

WRS-1060

WRS-1060 · 1000x600 Square Truss

1000x600 spigot square truss with 60x5mm main tube, 50x3mm sub tube, 43x3mm brace tube, 6082/6061-T6 aluminum, lengths 50-400 cm.

WRS-6076

WRS-6076 · 600x760 Square Truss

600x760 spigot square truss with 50x3mm main tube, 50x2mm sub tube, 30x2mm brace tube, 6082/6061-T6 aluminum, lengths 50-400 cm.

WRS-6012

WRS-6012 · 600x1200 Square Truss

600x1200 spigot square truss with 60x5mm main tube, 50x3mm sub tube, 43x3mm brace tube, 6082/6061-T6 aluminum, lengths 50-400 cm.

WRT-52 · 520x520 Folding Truss

520x520 spigot folding (triangle) truss with 50x3mm main tube, 50x2mm sub tube, 30x2mm brace tube, 6082/6061-T6 aluminum, lengths 50-400 cm.

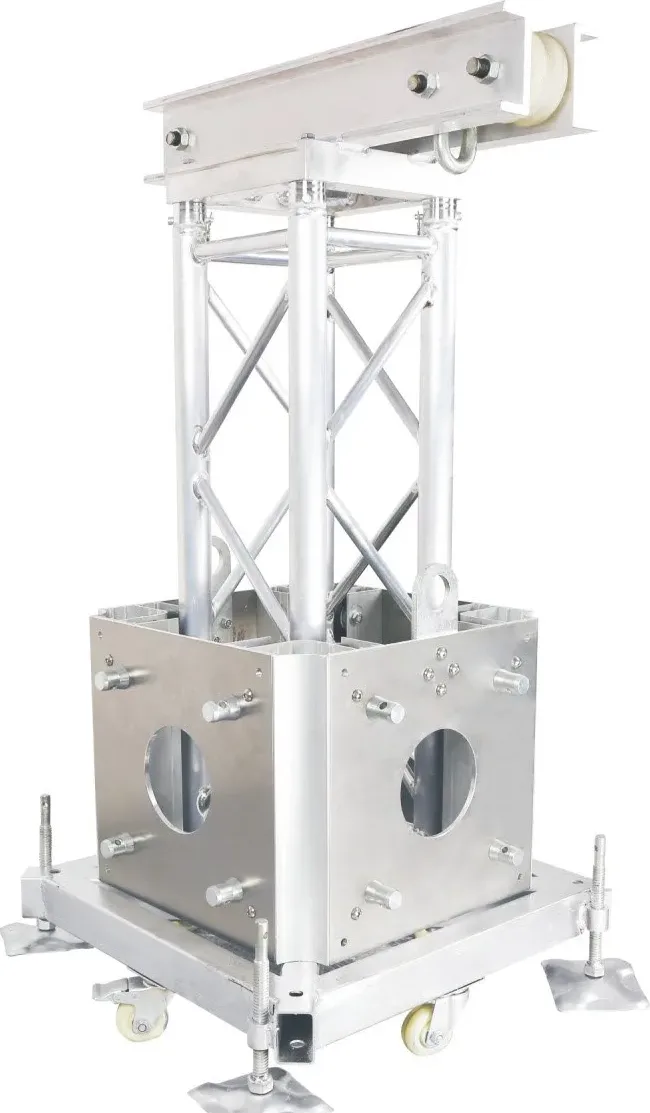

Spigot truss lifting tower with top pulley beam, sleeve block and wheeled base with outriggers

Spigot Lifting System

Spigot truss lifting system shown with lifting tower, top section with pulley beam, sleeve block, chain hoist, truss trolley, slings, base plate and outrigger stabilizers.

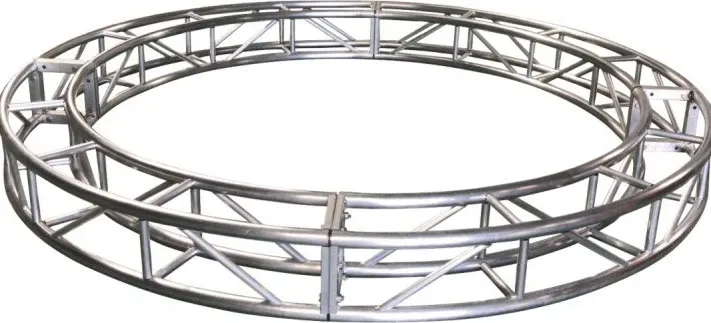

Aluminum circular truss ring shown in perspective

WR-04 · Customized Shaped Truss

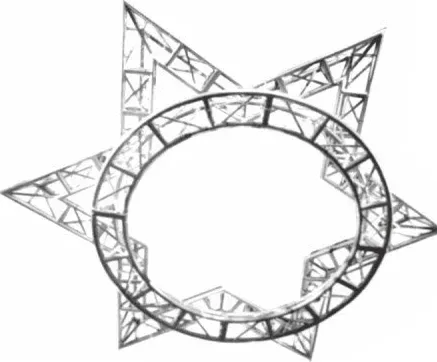

Star-outline truss frame with a circular truss ring inside

Customized Shaped Truss

Customized shaped truss produced in special shapes shown in the catalog, including double heart, cross, star, ring, bow, sphere, heart, sunburst ring, column and round-top frames.
