Bolt Truss

Bolt-connected aluminum truss (screw truss) for heavy-duty and long-span structures, with lifting system options.

300x300mm aluminum bolt ladder truss, main tube 50x3mm, sub tube 30x2mm, brace tube 25x2mm, 6082/6061-T6 aluminum, lengths 50-300 cm.

WRT-30

WRT-30 · 300*300 Triangle Truss

300x300mm aluminum bolt triangle truss, main tube 50x3mm, sub tube 30x2mm, brace tube 25x2mm, 6082/6061-T6 aluminum, lengths 50-400 cm.

WRQ-20

WRQ-20 · 200*200 Screw Truss

200x200mm aluminum screw background truss, main tube 30x2mm, sub tube 20x2mm, brace tube 16x2mm, 6082/6061-T6 aluminum, lengths 50-300 cm, light weight and small volume.

WRM-30

WRM-30 · 300*300 Bolt Square Truss

300x300mm aluminum bolt square truss, main tube 50x3mm, sub tube 30x2mm, brace tube 25x2mm, 6082/6061-T6 aluminum, lengths 50-400 cm.

WRM-40

WRM-40 · 400*400 Bolt Square Truss

400x400mm aluminum bolt square truss, main tube 50x3mm, sub tube 50x2mm, brace tube 25x2mm, 6082/6061-T6 aluminum, lengths 50-400 cm, spans up to 13 m.

WRM-45

WRM-45 · 450*450 Bolt Square Truss

450x450mm aluminum bolt square truss, main tube 50x3mm, sub tube 50x2mm, brace tube 25x2mm, 6082/6061-T6 aluminum, lengths 50-400 cm, spans up to 20 m.

Silver aluminum bolt truss segment with 300x300mm square cross section and triangular gusset plates

WRB-30 · 300*300 Bolt Truss

300*300 bolt truss with 50x3mm main tube, 50x2mm sub tube, 25x2mm brace tube, 6082/6061-T6 aluminum, lengths 50-400 cm.

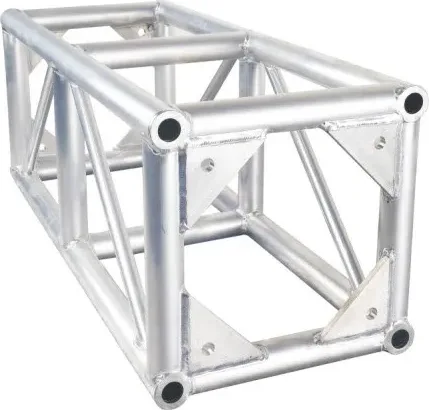

Aluminum bolt truss segment with 400x400mm square cross section and plate-bolted corners

WRB-40 · 400*400 Bolt Truss

400*400 bolt truss with 50x3mm main tube, 50x2mm sub tube, 25x2mm brace tube, 6082/6061-T6 aluminum, lengths 50-400 cm.

WRB-4060

WRB-4060 · 400*600 Bolt Truss

400*600 bolt truss with 50x3mm main tube, 50x2mm sub tube, 25x2mm brace tube, 6082/6061-T6 aluminum, lengths 50-400 cm.

Aluminum bolt truss segment with 450x450mm square cross section and triangular gusset plates

WRB-45 · 450*450 Bolt Truss

450*450 bolt truss with 50x3mm main tube, 50x2mm sub tube, 25x2mm brace tube, 6082/6061-T6 aluminum, lengths 50-400 cm.

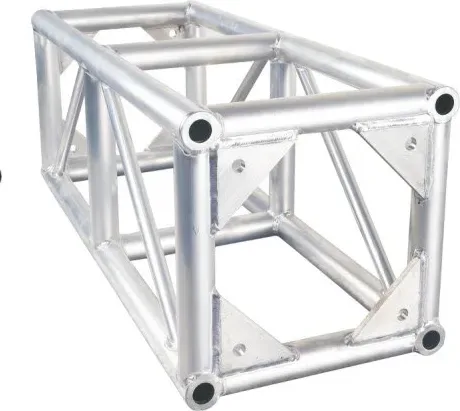

Aluminum bolt truss segment with 500x500mm square cross section and bolted plate joints

WRB-50 · 500*500 Bolt Truss

500*500 bolt truss with 50x3mm main tube, 50x2mm sub tube, 25x2mm brace tube, 6082/6061-T6 aluminum, lengths 50-400 cm.

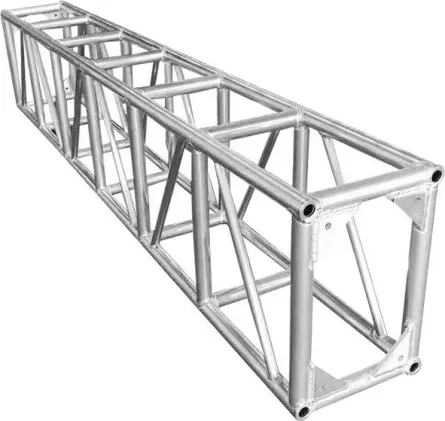

Long aluminum bolt truss section with 500x600mm rectangular cross section and diagonal bracing

WRB-5060 · 500*600 Bolt Truss

500*600 bolt truss with 50x3mm main tube, 50x2mm sub tube, 30x2mm brace tube, 6082/6061-T6 aluminum, lengths 50-400 cm.

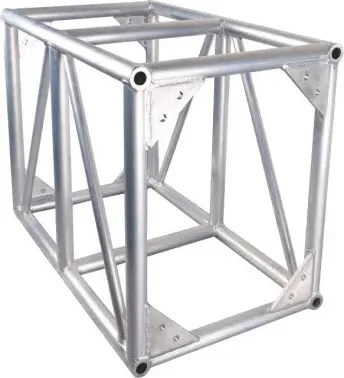

Tall aluminum bolt truss segment with 520x760mm rectangular cross section

WRB-5276 · 520*760 Bolt Truss

520*760 bolt truss with 50x3mm main tube, 50x2mm sub tube, 30x2mm brace tube, 6082/6061-T6 aluminum, lengths 50-400 cm.

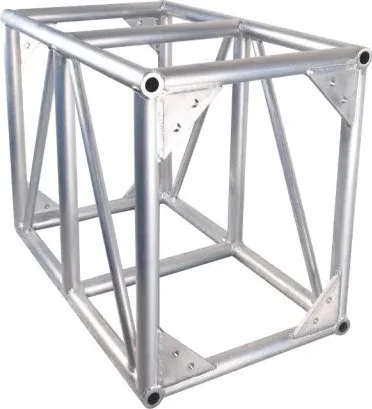

Large aluminum bolt truss segment with 600x760mm rectangular cross section

WRB-6076 · 600*760 Bolt Truss

600*760 bolt truss with 50x3mm main tube, 50x2mm sub tube, 30x2mm brace tube, 6082/6061-T6 aluminum, lengths 50-400 cm.

Silver aluminum bolt truss segment WRB-6010 with 600x1000mm rectangular cross section and diagonal bracing

WRB-6010 · 600*1000 Bolt Truss

600*1000 bolt truss with 60x5mm main tube, 50x3mm sub tube, 43x3mm brace tube in 6082/6061-T6 aluminum, lengths 50-400cm, max span 40M, full load 1500kg.

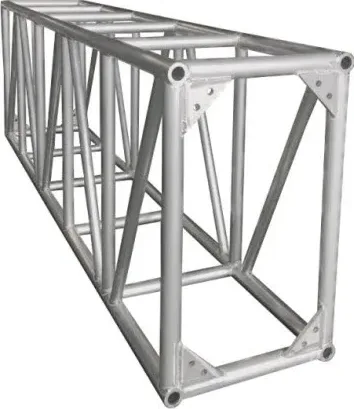

Aluminum bolt truss segment WRB-1200 with large rectangular cross section and welded plate connections

WRB-1200 · 600*1200 Bolt Truss

600*1200 bolt truss with 60x5mm main tube, 50x3mm sub tube, 43x3mm brace tube in 6082/6061-T6 aluminum, lengths 50-400cm, max span 40M, full load 1.5-1.8T.

WRL-30

WRL-30 · 300*300 Bolt Truss

300*300 bolt truss with 50x3mm main tube, 50x2mm sub tube, 25x2mm brace tube in 6082/6061-T6 aluminum, lengths 50-400cm.

WRL-40

WRL-40 · 400*400 Bolt Truss

400*400 bolt truss with 50x3mm main tube, 50x2mm sub tube, 25x2mm brace tube in 6082/6061-T6 aluminum, lengths 50-400cm.

Aluminum bolt truss segment WRL-4060 with 400x600mm rectangular cross section and bolt plate ends

WRL-4060 · 400*600 Bolt Truss

400*600 bolt truss with 50x3mm main tube, 50x2mm sub tube, 25x2mm brace tube in 6082/6061-T6 aluminum, lengths 50-400cm.

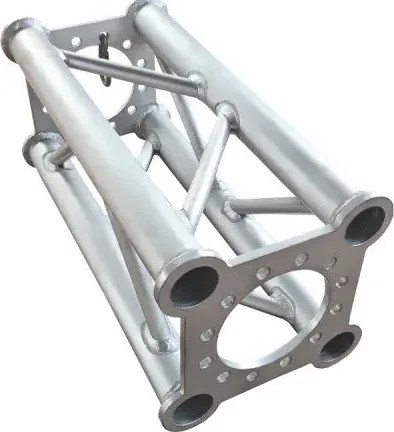

Aluminum truss segment WRT-238 with 238x238mm cross section, round main tubes and a connector plate with circular bolt pattern

WRT-238 · 238*238 Taiwan Truss

238*238 truss with 50x2mm main tube, 16x2mm sub tube, 16x2mm brace tube in 6082/6061-T6 aluminum, lengths 50-400cm.

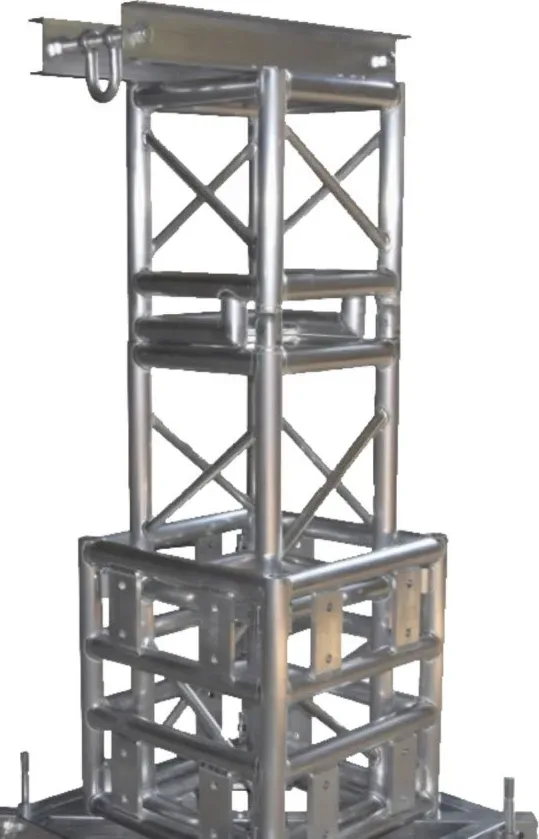

Assembled bolt truss lifting tower with top beam, sleeve block section and floor base plates

Bolt Truss Lifting System

Bolt truss lifting system consisting of top section, hinge, sleeve block, brace and base components.
